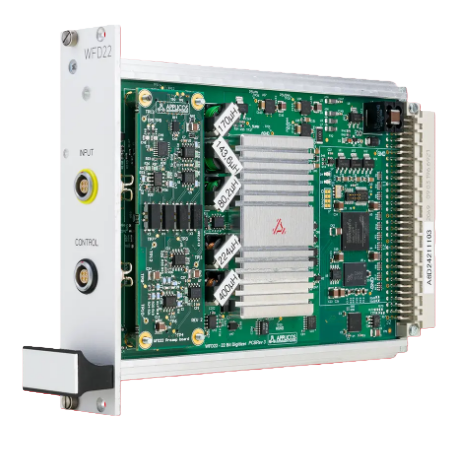

A 22 bit Waveform Digitizer for medium-speed / high resolution waveform capturing and analyzing
The module combines a superior dynamic performance with a very high DC accuracy.

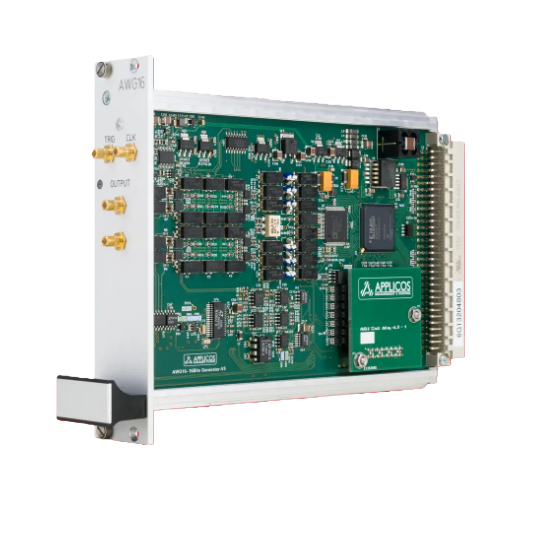

A 16 bit Arbitrary Waveform Generator for high-speed / high resolution waveform generation
The fully differential signal path from the DAC all the way to the outputs ensures an exceptional high signal quality. Despite the emphasis on signal quality the AWG16 also has a very good DC accuracy.

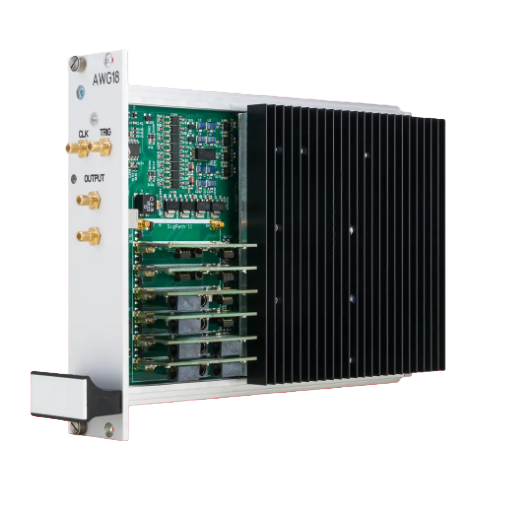

An 18 bit Arbitrary Waveform Generator for high-speed / high resolution waveform generation
This module features two dedicated signal paths: A DC to 100 MHz path which is optimized for accurate time domain and frequency domain measurements up to 30 MHz. And a dedicated AC path optimized for signals between 10 MHz to 100 MHz. In combination with the built-in filters it features a typical harmonics level of better than -80 dBc for the whole range.

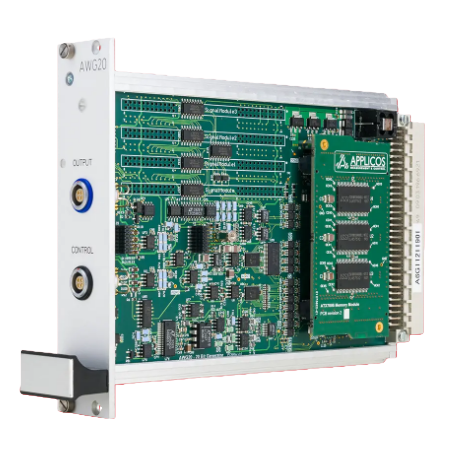

A 20 bit Arbitrary Waveform Generator for medium-speed / high resolution waveform generation
The module features differential outputs with a programmable common-mode voltage. For single ended applications the positive output as well as the negative output can be used. There are 8 filter paths available, 4 of them can be user configured.

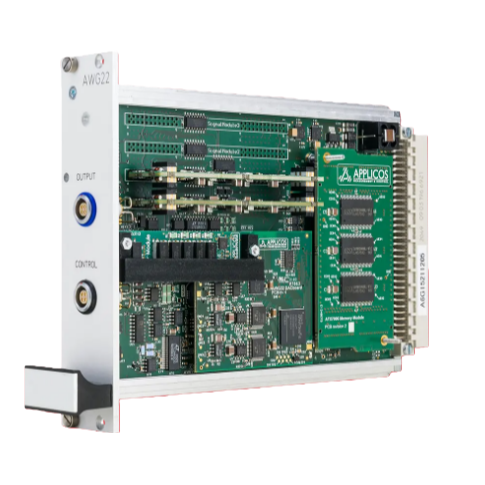

A 22 bit Arbitrary Waveform Generator for medium-speed / high resolution waveform generation
The AWG22 is upwards compatible with the AWG20 and also features differential outputs with a programmable common-mode voltage.

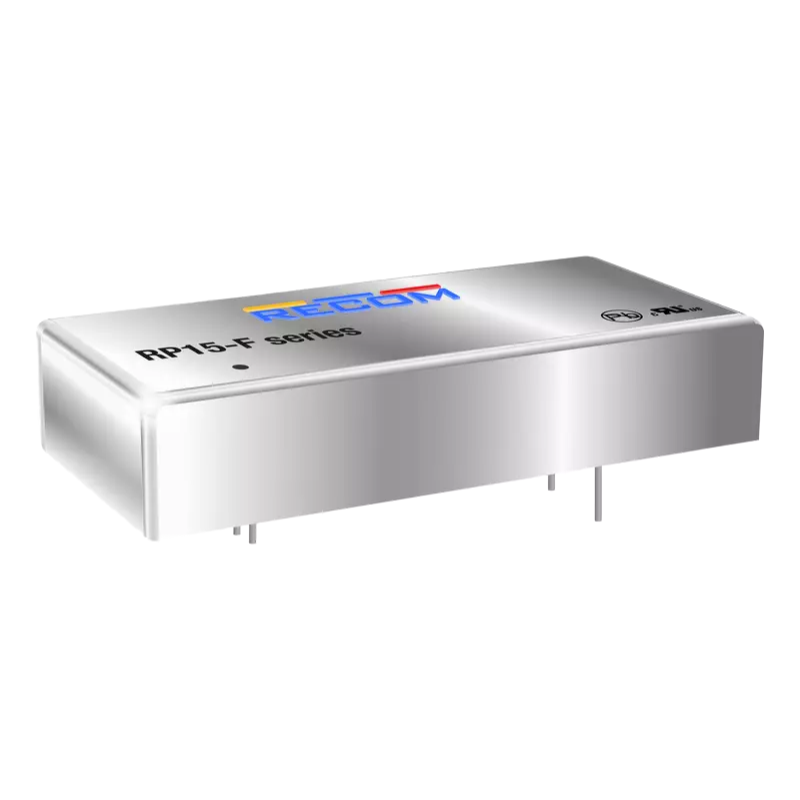

The RP15-F series DC/DC converters are certified to UL 60950-1 and to cUL 60950-1. This makes them ideal for all telecom and industrial applications where approved safety standards are required. The industry standard 2” x 1” package meets military standards for thermal shock and vibration tolerance.

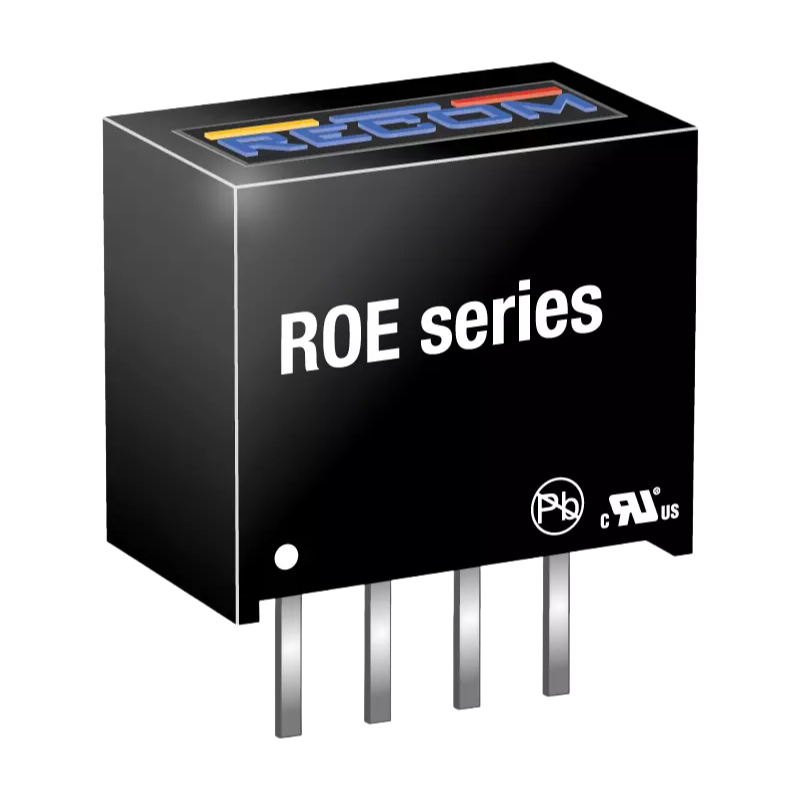

Low cost 1W converter
Industry standard pinout
SIP4 package
1kVDC isolation
Efficiency up to 80%
Wide operating temperature range -40°C to +85°C
UL60950-1 and CAN/CSA C22.2 No. 60950-1-07 certified

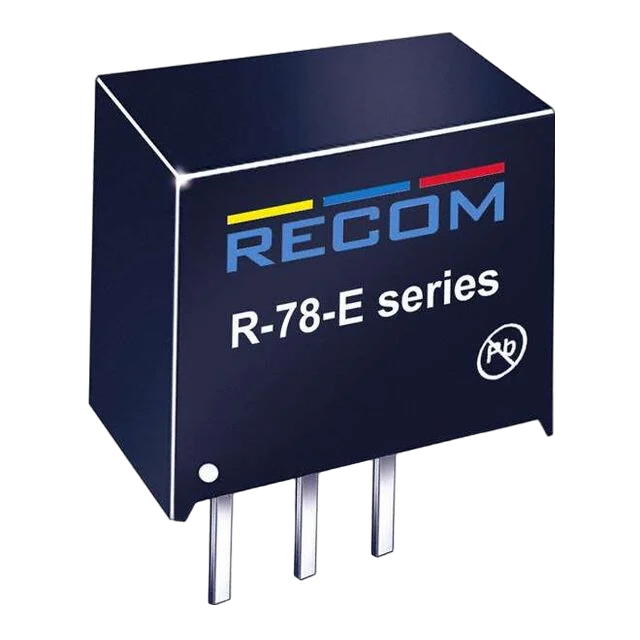

Low cost switching regulator
High start-up current capability
Efficiency up to 95%
Short circuit protection
Pin compatible with 78 series regulators
Non isolated DC-DC converter
IEC/EN60950-1+ AM2 certified
